Left-Handed Guitar Tremolo Bridge 10.8mm String Spacing
PRODUCT DESCRIPTION
Key Features:
- Left-handed tremolo bridge design for compatible left-handed 6-string electric guitars.
- 6-point mounting structure for traditional tremolo-style installation.
- Solid brass block for stronger sustain and a tighter response.
- Includes a push-in tremolo arm for quick setup and use.

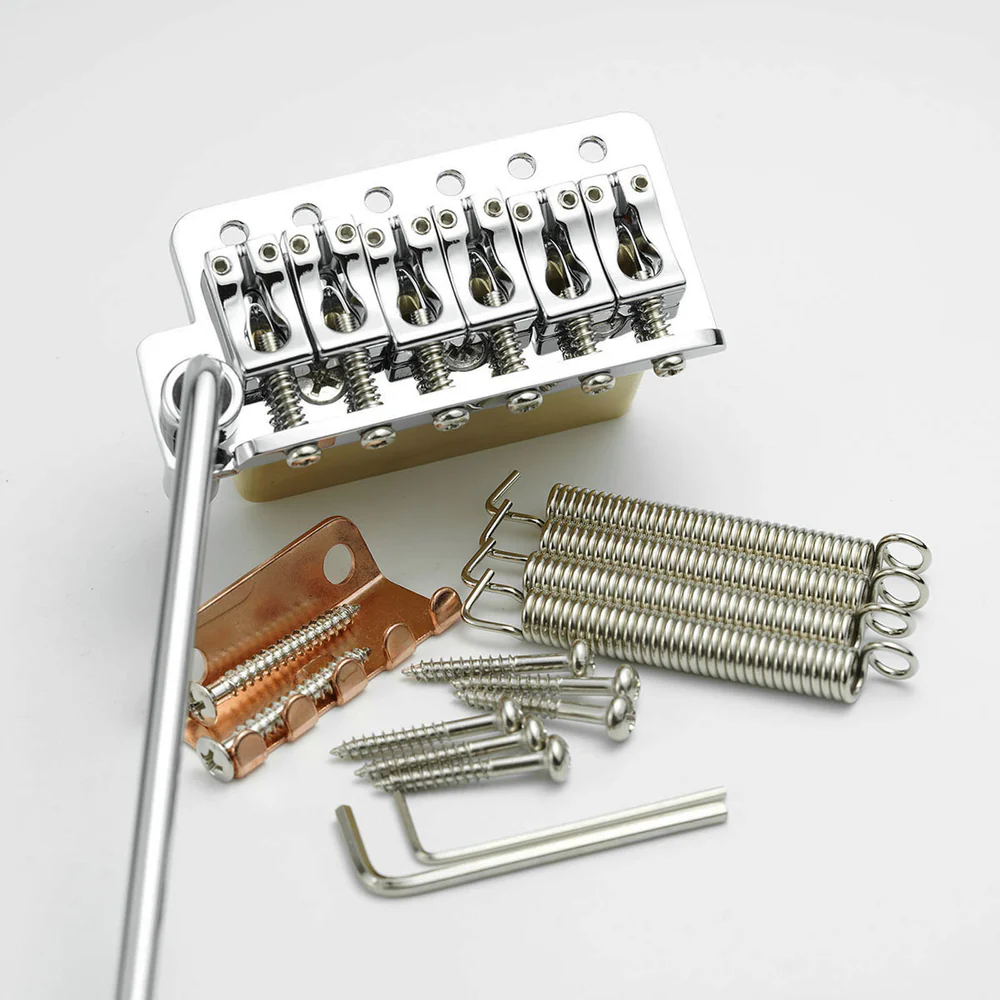

- Complete set includes the bridge unit, tremolo arm, claw, 4 noiseless springs, Allen keys, and mounting screws.
Specifications:
- Product Type: Left-Handed Guitar Tremolo Bridge
- Application: Most left-handed 6-string electric guitars equipped with a tremolo system
- Bridge Body Size: 83.1mm × 40.3mm
- Overall Bridge Width: 73.4mm
- 6-Point Mounting Screw Spread: 54.5mm
- String Spacing: 10.8mm
- Total E-to-e String Spacing: 54.0mm
- Brass Block Width: 63.2mm
- Brass Block Height: 38.4mm
- Brass Block Thickness: 13.0mm
- Saddle Length: 20.8mm
- Saddle Width: 6.4mm
- Bridge Plate to Tremolo Arm Tip Reference: 40.3mm
- Overall Height Reference: 49.5mm
- Tremolo Arm Hole Diameter: Ø5.5mm
- Color Options: Chrome, Black
Package Includes:
- 1 x Left-Handed Tremolo Bridge Unit
- 1 x Tremolo Arm
- 1 x Claw
- 4 x Noiseless Springs
- Allen Keys
- Mounting Screws
Fitment Note / Warm Reminder:
Please verify your guitar’s left-handed orientation, tremolo cavity, 6-point mounting layout, mounting screw spread, bridge footprint, and string spacing before ordering. This model uses 54.5mm 6-point mounting screw spread, 54.0mm total E-to-e spacing, and an 83.1mm × 40.3mm bridge body. Please also compare the 63.2mm × 38.4mm × 13.0mm brass block with your guitar’s tremolo cavity before purchase.
-
